GPS TRAILER TRACKER SYSTEMS

GPS Trailer Tracking To Prevent Theft

TRAILER MANAGEMENT SYSTEM

Matrack trailer tracker

SAVE $250 ON GPS TRAILER TRACKING DEVICE

Matrack is setting a new standard for
GPS Trailer Tracker!

We will respond 24/7 to your questions

Efficient asset utilization

Efficient Asset
utilization

Increase the utilization of investments
MAXIMIZE UTILIZATION
OF INVESTMENTS
Safeguard trailers and cargo
SAFEGUARD TRAILERS
AND CARGO

GPS TRAILER TRACKING PRODUCTS

MA-ASSET CLASSIC
ASSET TRACKER
Introducing our new asset tracker, the best and most convenient tool for making sure your property goes nowhere. Best used for assets such as detachable trailers, vintage autos, boats, construction equipment and, RVs. The asset trackers can survive the most extreme conditions. Its casing and structure make it both water-resistant and weatherproof. The MA-Asset Classic is simple, sturdy and has long battery life.
MA-Asset classic Asset Tracker device

GPS Specification

Receiver 50 channel, Receiver Sensitivity -161 dBm, Accuracy +/- 2.5m CEP, Cold Start <33 sec, Hot Start < 1 sec

OBD II Protocols Supported

J1850 PWM, J1850 VPW, ISO-9141-2, ISO-14230 KWP2000, ISO-15765 CAN

Power Requirement

D.C Power 6-18V, GSM 850 35mA average @12V, GSM 1900 30mA average @12V

Physical Connection

OBD Connector J1962, GPS Antenna Integrated, Cellular Antenna Integrated quad-band

Mechanical

Case Material ABS plastic, Dimensions 1.8” X 1.5” X 1”, Weight <2 oz, Operating Temperature -30°C to +70°C

Certifications

PTCRB, FCC

MA-Asset Classic Battery Life Estimation

Number of location reports per day Time between any 2 reports Battery Life
<1 35 hours 7 years
1 24 hours 5 years
2 (default) 12 hours 3 years
4 6 hours 1.5 years
12 2 hours 6 months
24 1 hour 3 months

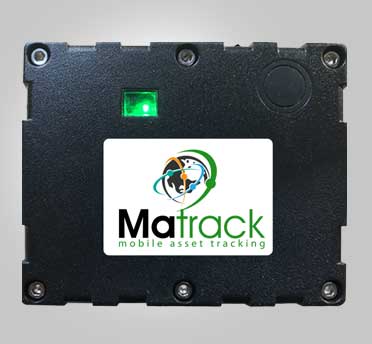

MA-HW Silver Weatherproof Hardwired Tracker
MA-HW Silver Weatherproof Hardwired
Weatherproof Hardwired Tracker is the best and most convenient tool for making sure your property is safe. Best used for assets such as construction equipment, vintage autos, boats, RVs and detachable trailers. It can survive refrigeration, blistering heat, or even a blizzard.
Serving as both an asset tracker and a logistics device, the MA-HW Silver can protect valuables, increase productivity, and save your business tons of money on unnecessary expenses.

3G UMTS/HSDPA/HSUPA Characteristics 2G GSM/GPRS/EDGE Characteristics
Class A User Equipment Class B Mobile Station
UTRA FDD GSM EDGE Radio Access (GERA)
3GPP Release 6 HSPA 3GPP Release 6
Dual-band Support
– Band – 1900 MHz
– Band – 850 MHz
Quad-band Support
-GSM -850 MHz   -E-GSM-900 MHz
– DCS – 1800 MHz   – PCS – 1900 MHz
WCDMA/HSDPA/HSUPA Power Class 3 GSM/GPRS Power Class
– Power Class 4 for GSM/E-GSM
– Power Class 1 for DCS/ PCS
EDGE Power Class
– Power Class E2 for GSM/ E-GSM
– Power Class E2 for DCS / PCS
PS (Packet Switched) Data Rate
– HSUPA category6, up to 5.76 Mb/s UL
– HSDPA category 8, up to 7.2 Mb/s DL
– WCDMA PS data up to 384 kb/s DL/UL
PS ( Packet Switched) Data Rate
– GPRS multi-slot class123, CS1-CS4,
up to 85.6 kb/s DL/UL
– EDGE multi-slot class 123, MCS1-MCS9,
up to 236.8 kb/s DL/UL
CS (Circuit Switched) Data Rate
– WCDMA CS data up to 64 kb/s DL/UL
CS (Circuit Switched) Data Rate
– GSM CS data up to 9.6 Kb/s DL/UL
supported in transparent/non-transparent

GPS Specification

Receiver 50 channel, Receiver Sensitivity -161 dBm, Accuracy +/- 2.5m CEP, Cold Start <33 sec, Hot Start < 1 sec

Certifications

PTCRB, FCC, AT&T Network

Power Requirement

Power Requirement: Input Power, Current: 6-24 VDC, Current: approx, 45mA active average, 150µA sleep mode, Battery: Internal 650, 960 or 6600 rechargeable Ll-lon

Physical Connection

8 pin Microsoft connector, 4 configurable I/O

Mechanical

Case Material: ABS plastic – optional weather-proofing, Dimensions: 2.4″ X 1.8″ X 0.7″ Note: larger batteries increase dimensions of device, Weight: 4oz, Operating Temperature: -30°C to +75°C, Status Indicators: Network registration/GPS status

MA-HW Silver
Solar water proof Hardwired

A discreet, waterproof, tamper-resistant device powered by the solar panel. Most convenient tool for making sure your property goes nowhere. Just attach and forget! Best used for assets such as detachable trailers, vintage autos, boats, construction equipment, and RVs.

Our most conscious and eco-friendly asset tracking device is a class of its own, The Solar Asset Tracker revolutionizes the world of GPS asset tracking by eliminating the headache that comes from time and energy spent maintaining the battery life of these asset tracking systems.

Solar Waterproof Hardwired MA-HW silver Asset tracker

GPS Specification

Receiver 50 channel, Receiver Sensitivity -161 dBm, Accuracy +/- 2.5m CEP, Cold Start <33 sec, Hot Start < 1 sec

OBD II Protocols Supported

J1850 PWM, J1850 VPW, ISO-9141-2, ISO-14230 KWP2000, ISO-15765 CAN

Power Requirement

D.C Power 6-18V, GSM 850 35mA average @12V, GSM 1900 30mA average @12V

Physical Connection

OBD Connector J1962, GPS Antenna Integrated, Cellular Antenna Integrated quad-band

Mechanical

Case Material ABS plastic, Dimensions 1.8” X 1.5” X 1”, Weight <2 oz, Operating Temperature -30°C to +70°C

Certifications

PTCRB, FCC

TRAILER TRACKING
MADE EASY

TRAILER TRACKING SYSTEMS COMPARISON

Features Asset Tracker MA-Asset Classic Weatherproof Hardwired MA-HW Silver Solar Power Hardwire
Fast 4G LTE Device
Real Time Location Updates
iOS and Android Apps
Geo Fence
Multi User Access
Driver Safety Reports
Dispatch Feature
Installed by Mechanic
3G Signal Cell
Weatherproof and Waterproof
Historical Reports up to One Year
Road Side Assistance
Power Backup
No Need to Recharge
AMEX Fuel Card
Email&SMS Alerts
GPS tracking device with 24x7 customer service and 30 days money back guarantee
