Vehicle Tracking
$12.95/month

MA-OBD
Classic Plug-in

Matrack device

$7.00/mo.

View Specs
Dimensions 1.2in X 2.7in X 4.1in
Accuracy +/– 2.5 CEP
Battery 1 Ah Li–Ion battery
Operating Temps –22 °F to 158 °F
Data Network 4G LTE Cat M1
Certifications FCC, PTCRB, IC, AT&T

MA-Hardwire
Classic

Matrack device

$12.95/mo.

View Specs
Dimensions 2.75in X 1.97in X 1.05in
Accuracy +/– 2.5 CEP
Operating Temps –22 °F to 158 °F
Data Network 4G LTE Cat M1
Certifications FCC, PTCRB, ISED,AT & T

MA-Hardwire
Silver

Matrack device

$12.95/mo.

View Specs
Dimensions 2.4in x 1.8in x 1.1in
Accuracy +/– 2.5 CEP
Operating Temps –22 °F to 158 °F
Data Network LTE (FDD)
Certifications FCC, PTCRB, ISED, AT&T

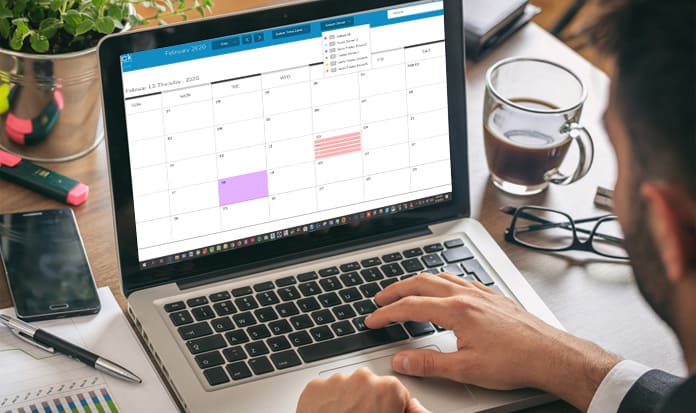

Manage Your Fleet with Fewer Resources

Maximize output by organizing, scheduling, appointing jobs and deliveries to your drivers with our integrated Dispatch Platform. Fleet Management software revolutionized the way we do business and manage our assets. Fleet owners are now realizing that it is one of the most important tools that can drive additional profit and allow them to take control of their fleet and manage costs.

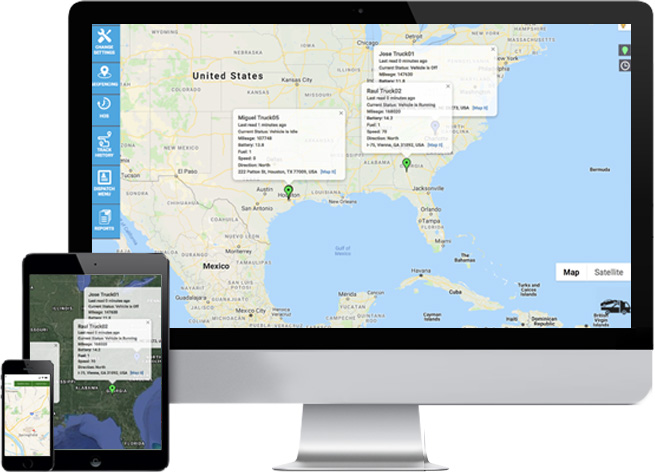

See the status and activity of all your fleet vehicles?

In a field-based delivery operation, when your drivers are beyond anyone ability to see, you truly need to recognize what is happening. Matrack Dispatch provides real-time visibility into your mobile field operation, so you can be guaranteed that everything is going on easily and if there are special cases, you can deal with them proactively.

Streamlined fleet
management gets more

Integrate fleet maintenance software with your asset management systems to track and analyze increasingly complex driver and vehicle data. By streamlining fleet maintenance processes, preventative maintenance, routine inspections and repairs won’t slip through the cracks – saving the company money while helping ensure safety on the road.





GPS Vehicle Trackers & Fleet Trackers

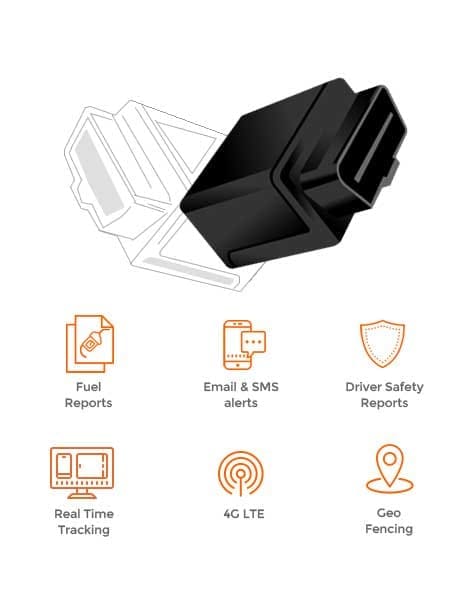

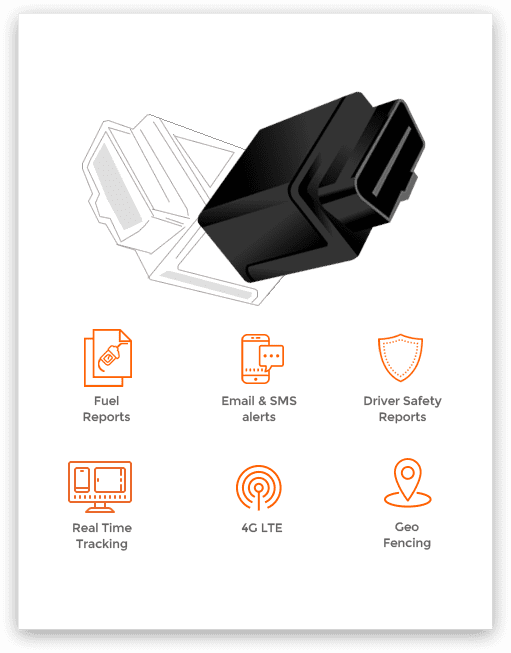

MA-OBD CLASSIC PLUG–IN

  • Keep your assets safe and secure.
  • Real time tracking.
  • Coordinate and optimize operations.
  • Speed and Hard Braking Alerts
  • Boundary exit/entrance alerts
  • Roadside assistance services.

An excellent means for tracking any vehicle. It is completely integrated with the On Board Diagnostics system so you can stay on top of Vehicle Health/Performance issues. Just plug it into your vehicles OBD port (located in all vehicles built after 1996). The MA-OBD Classic is our standard plugin OBD2 device. This piece of hardware plugs directly into the computer of your vehicle, allowing you to analyze precise details registered by your vehicles internal system such as Diagnostics. Though this GPS tracker is not designed for Freightliners, it is extraordinarily beneficial to Fleets such as Driving schools, car rental services, Limousine services, etc.

  • Dimension : (30.5 x 68.6 x 104.1 mm) (1.2in X 2.7in X 4.1in)
  • Harness connector :8–pin circular bayonet
  • Serial Interface : UART
  • Optional I/O : 2 Digital Input, 3 ADC Inputs
  • Multi–function button : WiFi/BLE Pairing, device wake-up
  • Operating Temperature :–22 °F to 158 °F (–30 °C to 70 °C)
  • DC Power :DC 8–30 V
  • Internal Battery : 1 Ah Li–Ion battery
  • Receiver Type : 72 channel
  • Tracking Sensitivity :165 dBm
  • Accuracy :+/– 2.5 CEP
  • TTFF Cold Start :27 seconds (Typical)
  • TTFF Hot Start :1 second (Typical) 50%, 24 static –130 dBm, >6 satellites
  • Certifications :FCC, PTCRB, IC, AT&T
  • 4G LTE Cat M1 :
    • LTE Cat. 1
    • 3GPP Release 13
    • Frequency Division Duplex
    • Power Class 3 (23 dBm) SMS: MT/MO (FDD)
  • LTE FDD Bands :2, 4, 12
  • Power Class :3 (23 dBm)
  • SMS :MT / MO
  • The OBD port can be located underneath the dashboard on the driver's side. All vehicles made since 1996 have this port.

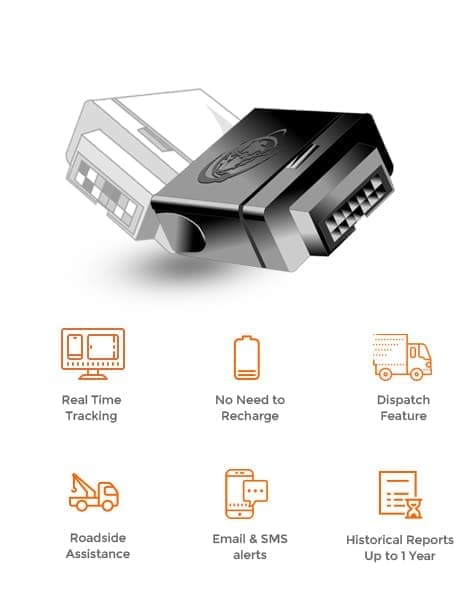

STANDARD HARDWIRED MA–HW CLASSIC

  • Keep your assets safe and secure
  • Real time tracking
  • Email & SMS Alerts
  • Manages its own battery life
  • Speed and Hard Braking Alerts
  • Geofencing alerts
  • Roadside assistance services

A discreet, tamper resistant device specialized for Fleets and Transport Services. The MA Hardwired Classic GPS tracking device sets the standard for vehicle monitoring and fleet management. With its compact design, direct battery connection, and expansive feature package, this real time tracker can be covertly wired in the vehicle.

    Cellular Specifications :
    • Receiver Type : 72 Channels
    • 4G LTE Cat M1 Characteristics: 1) LTE(FDD) 2)Supported Bands: FDD 2, FDD 4, and FDD 12 3) SMS: MT/MO
    GPS Specification
    • Receiver Tracking Sensitivity :-165 dBm
    • Accuracy :+/– 2.5m CEP
    • TTFF Cold Start :27 seconds (Typical)
    • TTFF Hot Start :1 second (Typical)
    • 50%, 24 static-130dBm, >6 Sats
    Power Specifications
    • D.C. Power : 8 – 28 VDC Input
    Physical Connection
    • Power and input/output : 14 pin Micro Fit Connector
    • Serial Interface : UART
    • I/Os : 1 Analog Input, 2 Digital Inputs, 1 Digital output
    Mechanical
    • Case Material: 1PC
    • Dimensions: 2.75 X 1.97 X 1.05 ( 7 cm x 5 cm x 2.7 cm)
    • Weight : < 2 oz. (<57 grams)
    • Operating Temperature:-30°C to +70°C
    Certifications
    • PTCRB
    • FCC
    • ISED
    • AT&T
  • Power on the unit. The blue status LED will blink at the rate of once every second within 1 to 2 minutes.
  • This indicates that the device has an available connection with the cellular network.
  • Final installation should be done only after both the blue and green LEDs blink at the rate of once every second.
  • Do not install the device under the hood. We recommend to install at the top most part right under the dashboard.

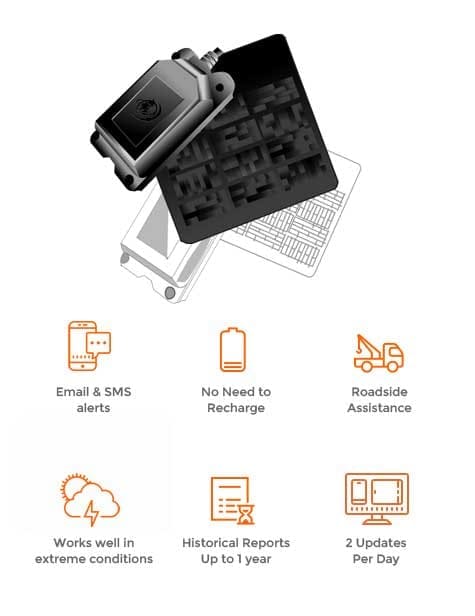

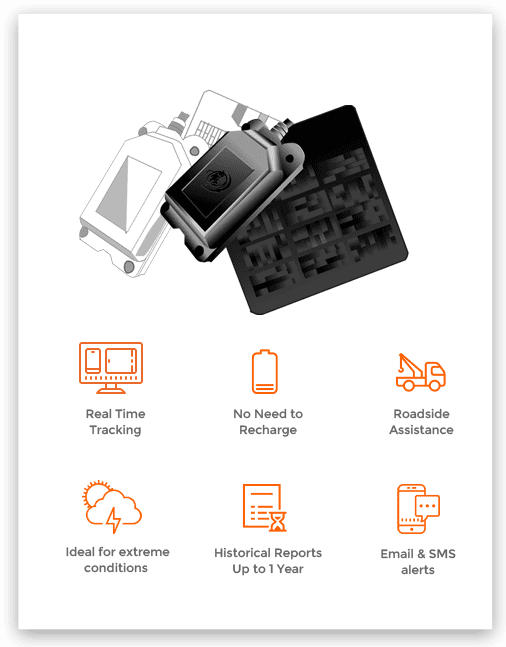

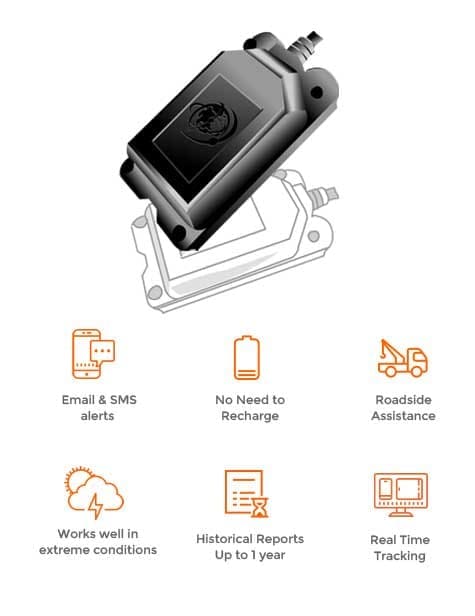

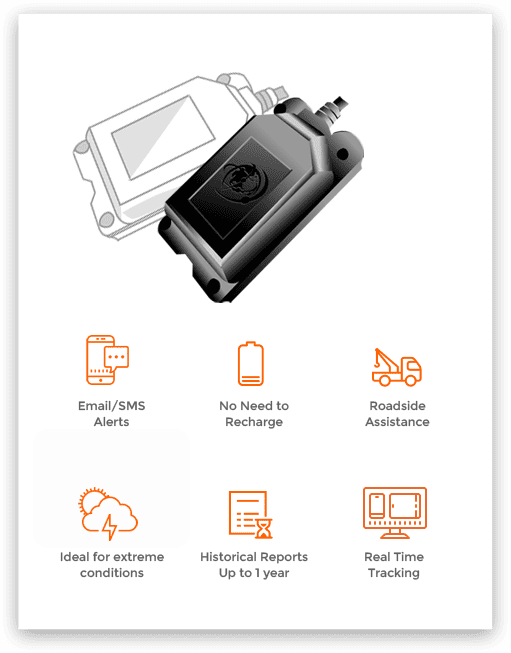

WEATHERPROOF HARDWIRED MA–HW SILVER

  • Water & weather-proof
  • Works well in extreme conditions
  • 1 year warranty
  • 2 Updates per day
  • Speed up asset recovery
  • Email & SMS Alerts
  • Aggressive tracking mode (in case of theft)
  • Roadside assistance
  • Dedicated 24/7 Technical Support

A discreet, waterproof, tamper-resistant device powered by the battery of your vehicle/asset. Most convenient tool for making sure your property goes nowhere. Just attach it and forget it! This device is a perfect fit for assets such as detachable trailers, vintage autos, boats, construction equipment, and RVs. It can survive the most extreme conditions. Its casing and structure make it both water-resistant and weather-proof.

This tracker also revolutionizes the world of GPS asset tracking by granting you the ultimate freedom to deploy the device without ever having to worry about physically accessing and retrieving it.

Cellular Specifications :
  • 3GPP Release 13
  • LTE (FDD)
  • Supported Bands : FDD 2, FDD 4, and FDD 12
  • SMS : MT/MO
GPS Specification
  • Receiver Tracking Sensitivity :-165 dBm
  • Accuracy :+/- 2.5m CEP
  • TTFF Cold Start :27 seconds (Typical)
  • TTFF Hot Start :1 second (Typical)
  • 50%, 24 static-130dBm, >6 Sats
OBDII Support
  • J1850 PWM
  • J1850 VPW
  • ISO-9141-2
  • ISO-14230 KWP2000
  • ISO-15765 CAN
Proprietary OBD Support
  • J1850 PWM
  • Medium Speed CAN
  • Single wire CAN
  • K-Line Mux
Power Requirement
  • D.C Power : 8–28V
  • Average Idle current:TBD
  • Low Power mode current :TBD
  • Optional Internal Battery:250 mAh Secondary Lithium Ion Battery >
Physical Connection
  • Physical Connection :J1962
  • GPS Antenna:Integrated
  • Cellular Antenna :Integrated dual-band
Mechanical
  • Case Material : PC
  • Dimensions : 2.4 x 1.8 x 1.1 (5.9 x 4.6 x 2.8 cm)
  • Weight : < 2 oz. (<57 grams)
  • Operating Temperature : –30°C to +70°C
Certifications:
  • PTCRB
  • FCC
  • ISED
  • AT&T
  • The device comes with three mounting options: screws, double sided tape and magnet.
  • The mounting kit which comes with device includes screws only. 3M Weld Tape and Mounting Magnets are optional.
  • Do not install under the hood or in an enclosed space surrounded by metals. The device needs adequate access to GPS signals, so make sure that the install position provides this access.
  • It can be mounted anywhere on the vehicle/trailer and must have access to the open sky. Make sure the blue and green LEDs on the unit are blinking.
  • A) Normal Ignition: Connect all 3 (red, black and white) wires during the installation. It�s the default mode of operation and all features are available.
  • B) Virtual Ignition: Connect only red and black wires during installation. Most suitable for installing on trailers, RVs or assets where ignition wires are unavailable. The tracker is powered by the battery and updates based on th e movement of the vehicle. Ignition ON/OFF and Engine status reports are not available.

GPS Trailer Tracking Case Studies

Card image

Continential Carriers LLC

A medium trucking company in Fresno, California.

Card image

JBD LLC

A medium trucking company in Fresno, California.

Card image

Crosby Anderson Freight

A medium sized Trucking company, based in Charlotte, North Carolina.

Frequently Asked Questions (FAQs)


   Our Tech Support Specialists are available 24*7 on email support.gps@matrackinc.com For phone support, we are available Monday through Friday 9:00 AM- 5:00 PM PST.

Yes, we ensure one year warranty for the trailer tracker.


There are NO hidden charges and NO contracts also.

Low power consumption gives the trailer tracker a stellar battery life of up to 5 years.

Of course! Our friendly sales staffs are eager to show you how great our application will of use to your business.

You can use driver safety reports to know the driving behaviour and if a driver needs any additional training..

Yes. Matrack trailer tracker provides state mileage reports and also fuel usage report. Free IFTA reports for your fleet at no additional cost.
